Hvac high pressure switch troubleshooting

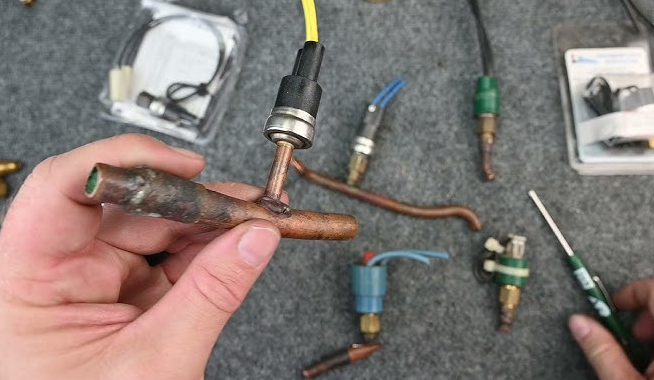

To troubleshoot a high-pressure switch malfunction in an HVAC system, first confirm whether the system refrigerant pressure is too high or if the switch itself is faulty.

Common causes of high-pressure tripping:
Dirty condenser coils: Restrict heat dissipation, leading to increased system pressure.
Outdoor fan motor malfunction: Prevents air from being drawn into the coils, causing heat buildup.
Overcharged refrigerant: Excessive refrigerant can cause operating pressure to exceed safe limits.
Airflow obstruction: Dirty air filter or blockage in the outdoor unit’s clearances.

Step-by-step diagnostic procedure:
Check power and commands: Ensure the thermostat is issuing a cooling command and that the outdoor unit has 24V power.
Test the voltage across the switch: Connect a multimeter to the two terminals of the high-pressure switch. If the input voltage is 24V and the output voltage is 0V (open circuit), the switch has tripped or is open-circuited.
Measure the actual system pressure: Connect a pressure gauge manifold to the liquid line to check the high-pressure side operating pressure.

If the actual pressure is normal or low (e.g., below 400 PSI for R-410A refrigerant), but the switch is open, the switch is faulty and needs replacement.

If the actual pressure exceeds the cut-off threshold (typically 550–600 PSI for R-410A refrigerant), the switch is functioning correctly; check for airflow obstruction or a faulty cooling fan.

Power-off test: Turn off the system power, disconnect the switch wire, and then test its continuity. A closed switch indicates continuity; an open switch with normal pressure indicates an internal mechanical fault.
